Constant Temperature Humidity Chamber / Li-Ion Battery Testing Equipment

Name: Constant Temperature Humidity Chamber LiIon Battery Testing Equipment
Brand: AISILI
Price: 1 USD

Quality Constant Temperature Humidity Chamber / Li-Ion Battery Testing Equipment wholesale

Brand Name : AISILI

Model Number : TH-150-E

Certification : CE , ISO , BV

Place of Origin : China

MOQ : 1 set

Price : Negotiation

Payment Terms : T/T, Western Union

Supply Ability : 80 sets per month

Delivery Time : 20 workdays

Packaging Details : Standard Export Plywood Case

Internal Dimension : W500xH600xD500mm

Test Hole : Dia. 50mm

Viewing Window : 350*450mm

Temperature range : -60~150C

Humidity Range : 10% to 98% RH

Communication Interface : R232 or R485

Controller : TT5166

Sample : Li-Ion Battery

Contact Now

Constant Temperature Humidity Chamber/Li-Ion Battery Test Equipment

Constant Temperature Humidity Chamber/Li-Ion Battery Test Equipment can simulate different environmental conditions, such as heat-endurance, cold-endurance, dryness-endurance, and humidity-endurance, which defines the performance of material. By testing the product under different environmental conditions to see whether its performance can meet the intended requirements. It is widely applied in the industries of electron, electrical equipment, vehicle, metal, foodstuffs, chemistry, building materials, luggage, adhesion tape, printing, packaging, and other product components and materials.

Constant Temperature Humidity Chamber/Li-Ion Battery Test Equipment Technical Parameters

Model	TH-150(A~F)
Internal Dimension WxHxD (mm)	500x600x500
External Dimension WxHxD (mm)	1050x1750x1050
Temperature Range	Low Temperature(A:25°C B:0°C C:-20°C D:-40°C E:-60°C F:-70°C) High Temperature 150°C
Humidity Range	20%~98%R.H.(10%-98% R.H. / 5%-98% R.H ,is optiona , need Dehumidifier)
Indication relolution/Distribution uniformity of temperature and humidity	0.1°C; 0.1% R.H/±2.0°C; ±3.0% R.H.
Control Accuracy of Temperature and Humidity	±0.5°C; ±2.5% R.H.
Temperature Rising/Falling Velocity	Temperature rising approx. 0.1~3.0°C/min ; temperature falling approx. 0.1~1.0°C/min; ( Falling Min.1.5°C/min is optional)
Inner and Outer Material	Interior material is SUS 304# stainless steel, exterior is stainless steel or see cold-rolled steel with paint coated.
Insulation Material	Resistant to high temperature, high density, formate chlorine, ethyl acetum foam insulation materials
Cooling System	Wind cooling or water cooling, (single segment compressor-40°C, double segment compressor -70°C)
Protection Devices	Fuse-free switch, overloading protection switch for compressor, high and low voltage coolant protection switch, over-humidity and over-temperature protection switch, fuses, fault warning system, water short storage warning protection
Optional Accessories	Inner door with operation hole , Recorder, Water Purifier, Dehumidifier
Compressor	French Tecumseh Brand, Germany Bizer Brand
Power	AC220V 1 phase 3 lines, 50/60HZ , AC380V 3 phase 5 lines , 50/60HZ
Approx. Weight (Kg)	180

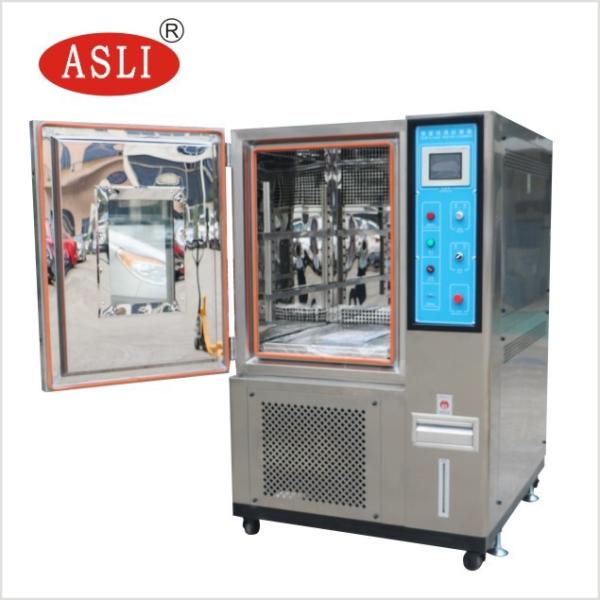

Constant Temperature Humidity Chamber Pictures

Constant Temperature Humidity Chamber / Li-Ion Battery Testing Equipment

Package: PP film first, and then 10mm foam between machine and the case, and outside is standard export plywood case.

Constant Temperature Humidity Chamber / Li-Ion Battery Testing Equipment
